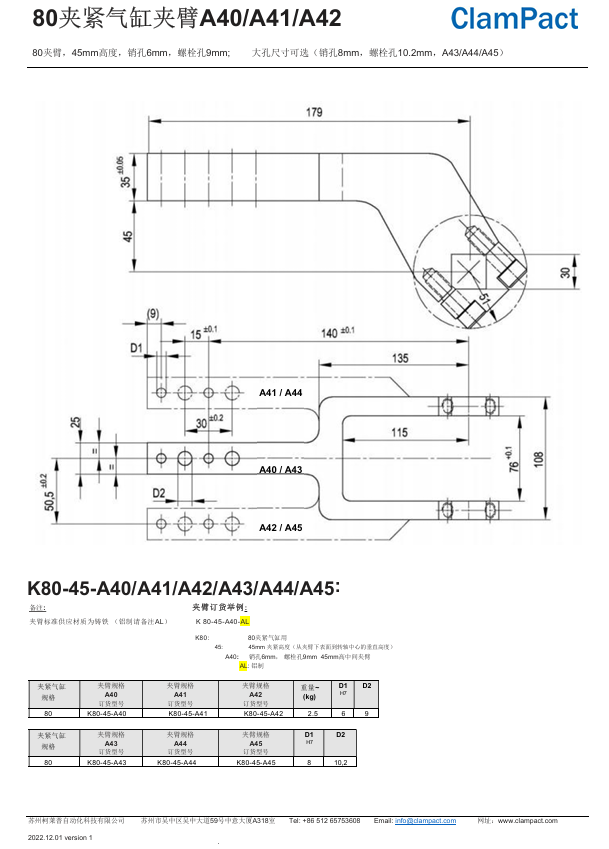

Suitable for 80mm Clamp, Big hole(8mm for pin, 10.2mm for screw), 45mm offset, center arm.
Material: Steel for standard(Add -S, order code: K80-45-A43-S). Aluminum as option.(Add -AL, order code: K80-45-A43-AL)
80夹紧气缸用，通用型DIN标准夹臂。可以配套多个品牌的80夹紧气缸。
Suitable for 80mm clamp,DIN standard. Can be used for several brand 80mm clamp.
