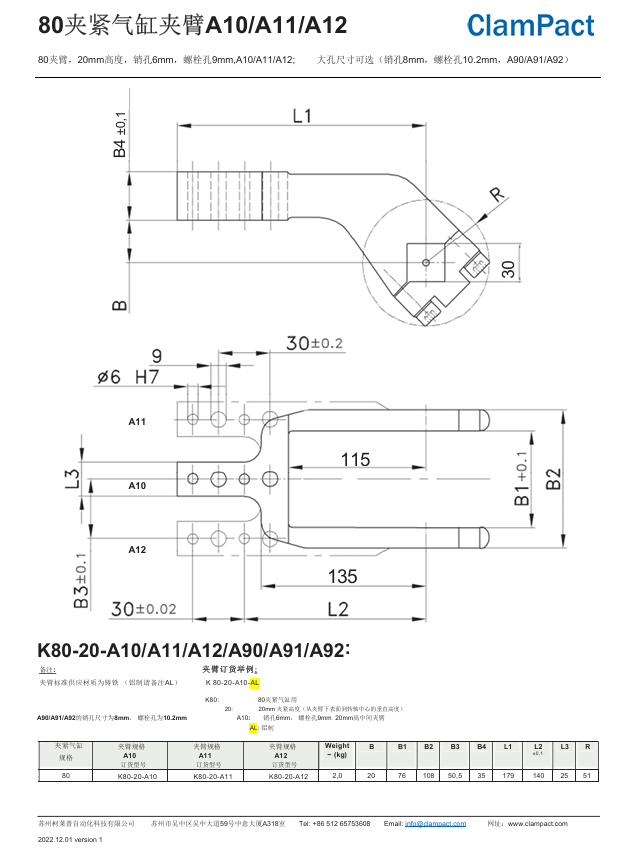

Suitable for 80mm Clamp, standard hole(6mm for pin, 9mm for screw), 20mm offset, right arm.
Material: Steel for standard(Add -S, order code: K80-20-A11-S). Aluminum as option.(Add -AL, order code: K80-20-A11-AL)
80夹紧气缸用，通用型DIN标准夹臂。常规标准。可以配套多个品牌的80夹紧气缸。
Suitable for 80mm clamp, DIN standard. Can be used for several brand 80mm clamp
